Lighting for a basketball court is more than just installing fixtures and flipping a switch. The setup must deliver consistent visibility, reduce shadows, and promote a uniform playing experience. Whether the court is for recreational use, a high school facility, a college campus, or a professional arena, the approach to illumination involves careful consideration of layout, light levels, mounting height, and light distribution.
| Court Type | Number of Fixtures (Outdoor) | Number of Fixtures (Indoor) |
|---|---|---|
| Recreational Half-Court | 4 (one at each corner) | 6-8 (wall- or ceiling-mounted LED floodlights) |
| Full-Size Court | 6-8 (pole-mounted LED floodlights) | 12-16 (high bay LED lights) |
| High School Gym | 6-8 (if outdoors) | 12-16 (high bay lights, grid layout) |
| College/Professional Arena | 10-12 (pole-mounted, high-output LEDs) | 30-36 (high bay or custom arena lights) |
| Televised Game Venue | 12-14 (enhanced for camera requirements) | 36+ (high bay + supplementary lighting rigs) |
Determining the Number of Fixtures Required
One of the most crucial factors in designing an effective basketball court lighting system is determining how many fixtures are needed. The number of lights required can vary significantly depending on several key variables, including the size of the court, the intended usage (whether it’s for recreational play, school games, or professional events), the height at which the lights will be mounted, and the type of fixtures chosen. In general, the larger the court, the more lights will be required to ensure uniform and adequate illumination across the entire playing surface.
For example, a standard half-court designed for recreational outdoor play typically requires far fewer lights than a full-size court used for competitive events. A half-court can be adequately lit with as few as four LED fixtures, placed one at each corner. These lights will provide enough illumination for casual games, where the intensity of lighting doesn’t need to meet the same standards as in professional venues. However, as the court size increases, so does the number of lights required. A full-size outdoor basketball court typically requires between six to eight fixtures to meet the necessary lighting levels. The number of lights ensures that all areas of the court are covered, allowing players to see the ball and their surroundings clearly, even during evening games or in low-light conditions.
Factors Influencing the Number of Fixtures
Several factors play a crucial role in determining the exact number of lights required for a basketball court. The first consideration is the size of the court, as larger courts will naturally require more fixtures to achieve consistent and even lighting. This is particularly true for professional-grade courts, which need higher light intensity to meet specific standards for competitive play. A regulation full-size court used for organized games or tournaments will need more fixtures spaced across the perimeter of the court to ensure all areas, including the key and baseline, are properly illuminated.
Another key factor to consider is the height at which the lights are mounted. Higher mounting points generally result in more even distribution of light but may also require additional fixtures to compensate for the spread of light. For instance, outdoor courts with pole-mounted fixtures positioned at 20 to 30 feet may need additional lights to fill in gaps where the light distribution is less uniform. Indoor courts, particularly those with higher ceilings, may require fewer fixtures but at higher wattages to maintain consistent lighting intensity across the playing surface.
The intended usage of the court is another variable that directly influences the number of fixtures required. For a recreational outdoor court, a minimal number of fixtures may be sufficient. However, for organized or professional events, such as high school tournaments or professional leagues, more lights will be necessary to meet the lighting standards for broadcasting, player performance, and spectator experience. The specific lighting needs for filming, such as in televised games, may demand specialized lighting setups with more precise fixture placement.
Lighting Design for Different Court Sizes
As the size of the basketball court increases, so does the complexity of the lighting design. For a standard half-court, the lighting requirements are relatively simple, and fewer lights are required to adequately cover the area. A typical recreational half-court might only need four LED fixtures—one on each corner of the court—to provide enough illumination for casual play. This setup is generally sufficient for non-competitive, recreational games where players are not required to operate under stringent lighting conditions.
On the other hand, a full-size court, especially one used for professional or school competitions, needs a more comprehensive approach to lighting. Full-size outdoor courts, which measure 94 feet by 50 feet, often require six to eight fixtures to provide optimal illumination. These lights should be arranged around the perimeter of the court to ensure that the entire surface is lit evenly. Additionally, the lights must be installed at appropriate heights and angles to avoid areas of overexposure or dark spots that could hinder player visibility and affect the game.
For larger indoor courts, such as a high school gymnasium, between 12 to 16 high bay lights are typically used to ensure uniform lighting coverage. These lights are arranged in a grid pattern, with fixtures spaced evenly across the ceiling. For example, in a high school gym with a 40-foot ceiling and a regulation-sized court, 14 high bay lights may be used to achieve sufficient lighting levels. The number of fixtures will increase as the venue size and ceiling height increase, especially for professional venues that require higher light levels for both gameplay and broadcasting purposes.
In larger venues, such as college or professional arenas, upwards of 30 fixtures may be necessary. These courts often feature larger seating areas, and the lights must be arranged not only to meet the lighting needs of the court but also to ensure optimal visibility for the spectators and television broadcasts. For instance, a professional basketball arena may require as many as 36 lights, spaced strategically to avoid shadows on the court and ensure a consistent level of brightness across the entire surface.
Simulation Tools for Accurate Fixture Placement
To ensure that the lighting design is both effective and efficient, many designers rely on computer-aided lighting simulations. These simulations allow lighting designers to model the potential lighting setup and predict how many fixtures are required to achieve the desired levels of brightness and uniformity. Through these advanced tools, designers can adjust variables such as fixture height, wattage, and placement to create an optimized lighting layout before any physical installation takes place. The ability to visualize how the lights will affect the court’s appearance and functionality is particularly useful for complex spaces, such as large indoor arenas or outdoor courts with irregular shapes or surroundings.
Computer-aided design (CAD) tools also help designers assess energy consumption and predict the lighting system’s overall efficiency. With these simulations, designers can adjust the number of lights and their specifications to ensure that the system meets the required lighting standards without wasting energy. By accurately calculating the energy usage and visual impact of the lighting design, designers can ensure that the lighting system is both effective and sustainable, minimizing costs for maintenance and electricity usage in the long run.
Simulation tools not only help predict lighting outcomes but also enable designers to experiment with different fixture configurations. For example, they can adjust the layout of pole-mounted fixtures for outdoor courts or tweak the grid configuration of high bay lights for indoor courts to find the most efficient setup. These tools allow for precise calculations, such as calculating the necessary beam angle to achieve uniform light distribution and determining the optimal placement of lights to eliminate shadows and ensure smooth gameplay.
In addition to helping with lighting configuration, simulations also provide useful insights into the potential impact of different lighting types. For example, they can model the effects of LED lights versus traditional metal halide or fluorescent lights, which can help designers make informed decisions based on factors like energy efficiency, brightness, and light quality. As LEDs have become the industry standard for basketball court lighting, their superior energy efficiency and longer lifespan make them an attractive option in most lighting designs.
Ultimately, determining the right number of fixtures for a basketball court requires a balance between functionality, energy efficiency, and cost-effectiveness. Whether lighting a small recreational court or a large professional arena, the goal is to ensure that the court is illuminated to meet the needs of players and spectators alike. By considering factors like court size, usage, fixture type, and mounting height, and by using advanced tools like lighting simulations, designers can create the optimal lighting system that supports performance, safety, and visibility, ensuring the best possible experience for everyone involved.

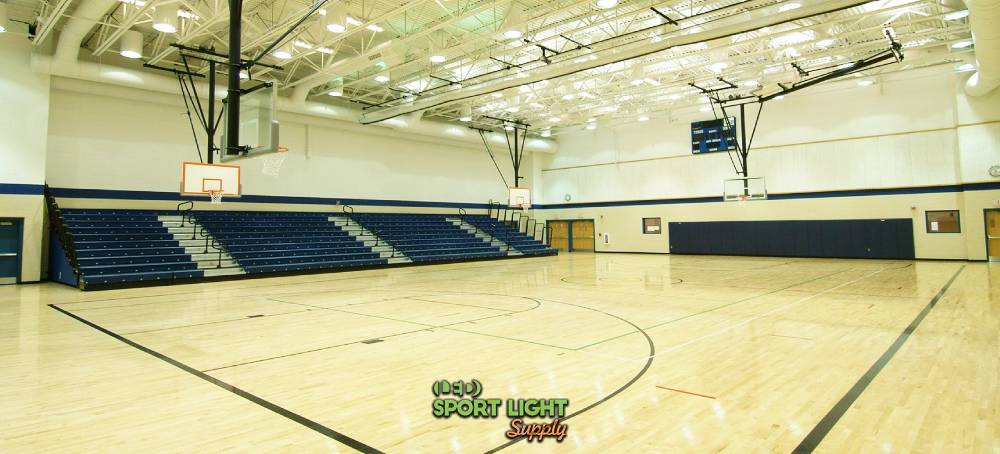

Understanding the Court Dimensions and Layout
The size of the basketball court plays a foundational role in deciding the lighting design. A standard full-size basketball court measures 94 feet in length and 50 feet in width for professional and collegiate use. High school courts are slightly smaller at 84 feet by 50 feet. For outdoor community courts or backyard setups, dimensions can vary, but lighting principles remain largely consistent.

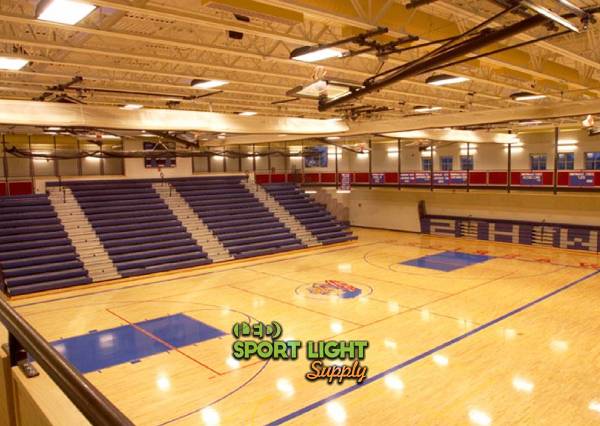

Dimensions and Their Impact on Lighting Distribution
The layout and dimensions of a basketball court directly influence the number of fixtures required and their placement. A larger court, such as those used in professional arenas, requires more powerful lighting systems to ensure that light reaches all areas evenly. The additional length and width mean that more fixtures are needed to avoid dark spots and ensure uniform illumination across the full playing area. In contrast, a smaller court, like those often found in high school gyms or community centers, will require fewer fixtures and less intense lighting to achieve the desired results.
Understanding how light behaves on different court sizes is essential to ensure that the intensity and spread are right. A key consideration is how far light needs to travel to cover the entire surface. On larger courts, the lights must be spaced further apart to maintain proper coverage, whereas smaller courts allow for closer fixture placement. Proper planning ensures that no areas of the court are left in shadow or overly illuminated, both of which could affect the quality of play.
Adjusting for Court Shape and Special Features
In addition to overall court size, the shape and any special features can impact lighting requirements. A traditional basketball court has a rectangular shape with specific dimensions, but variations do exist. For example, some courts may have additional markings for multi-sport use or curved designs for specific leagues. These features often require customized lighting strategies to ensure even distribution and performance. In multi-use settings, lighting systems might need to be flexible or adjustable to accommodate different types of games, ensuring the light coverage is effective for each configuration.
Consideration must also be given to elements such as bleachers, scoreboards, or walls that could obstruct light paths. These obstacles may cause shadows or uneven lighting on certain sections of the court. For instance, a scoreboard located at the center of the court could block light from overhead fixtures, creating dark spots on the court floor. Proper placement of lighting fixtures, taking into account these obstructions, ensures that no area is left poorly lit, preserving a consistent play experience.
These measurements help determine how far light must travel and the spread it needs to cover. Proper placement ensures there are no overly bright or dark spots that could interfere with gameplay. Balanced distribution supports both player performance and spectator experience, especially in structured competitions.

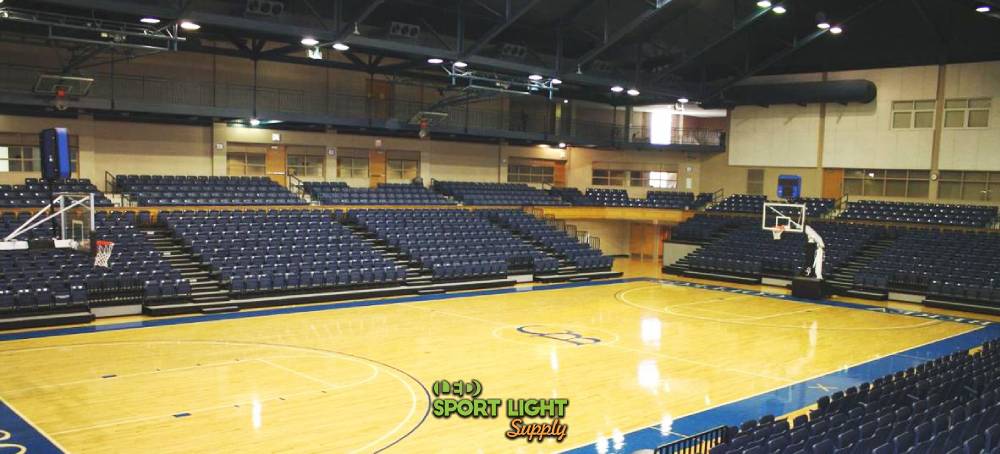

Types of Fixtures Commonly Used
LED Floodlights
LED technology has become the go-to choice for basketball court lighting due to several advantages it offers over traditional lighting solutions. These lights are energy-efficient, which reduces operating costs over time, especially important in large-scale installations such as professional arenas or community courts that may require constant use. LED floodlights have a long lifespan, often outlasting older technologies like metal halide or halogen lights by many years. This extended lifespan means fewer replacements and lower maintenance costs for court owners and operators.
One of the main advantages of LED floodlights is their wide-angle beams that allow them to cover large areas with fewer fixtures. This can significantly reduce both the initial investment and long-term operating expenses, as fewer lights are required to provide the same level of illumination as traditional systems. The lights can be mounted on poles, ceilings, or beams, depending on the design of the court, and are often paired with adjustable brackets that allow operators to direct light precisely where it’s needed. This adjustability ensures uniform light coverage, eliminating the possibility of dark spots or areas where light is too intense.
Additionally, LED floodlights provide instant illumination when powered on, avoiding the warm-up period required by older systems like metal halide lights. This immediate light output ensures that the court is illuminated as soon as the lights are switched on, making them particularly convenient for venues that need to prepare for events or games quickly. Their ability to turn on and off without delay also makes them suitable for venues with variable lighting schedules or for facilities where energy-saving measures are prioritized.
The energy efficiency of LED floodlights also translates to less heat output, which can improve comfort levels on and around the court. As LEDs produce less heat than traditional bulbs, they can help maintain a more stable temperature in both indoor and outdoor environments, creating a more pleasant atmosphere for players and spectators alike.
High Bay Lights
High bay lights are a popular choice for indoor basketball courts, particularly those with high ceilings, such as those found in gymnasiums or arenas. These lights are designed to produce concentrated beams of light that focus on specific areas of the court. Their narrow beam angle allows the light to reach the playing surface without spilling into surrounding spaces, which reduces energy waste and focuses illumination precisely where it’s needed.
These lights are available in a variety of wattages, allowing for flexibility in terms of brightness levels. Depending on the size and layout of the gymnasium or sports venue, high bay lights can be selected with varying levels of intensity. For example, smaller high school gyms may only need lower-wattage fixtures, while larger arenas or professional courts will require higher-wattage systems to achieve the desired light levels. This range of options ensures that high bay lights can be tailored to meet the specific requirements of the court and the type of game being played.
Another advantage of high bay lights is their adaptability in terms of color temperature. In an indoor environment, the color of the light can influence how players perceive the court and the ball. A cooler color temperature, closer to daylight white, can enhance visibility and contrast, making it easier for players to track the ball and other movements. On the other hand, warmer color temperatures may create a more comfortable atmosphere for spectators and participants. High bay lights provide the flexibility to choose the appropriate color temperature that balances both performance and comfort.
Uniform installation of high bay lights is another key factor in their effectiveness. These fixtures are typically installed in a grid-like pattern, ensuring that light is distributed evenly across the court. This installation method helps prevent hot spots—areas of intense brightness—and dark spots—areas where light is insufficient—ensuring that every corner of the court is adequately lit. This even distribution is vital for creating a fair playing environment and for enhancing the spectator experience during games.
Pole-Mounted Fixtures for Outdoor Use
Outdoor basketball courts often rely on pole-mounted fixtures to provide elevated, wide-reaching light that covers the entire playing area. These fixtures are typically installed at the four corners or along the sidelines of the court, depending on the layout and design of the space. The height of the poles, usually between 20 to 30 feet, is crucial in ensuring that light is spread evenly across the court while minimizing glare that can interfere with players’ vision.
Each pole may hold between one and four fixtures, depending on the power of the lights and the size of the court. The wattage of these LED fixtures can range from 200W to 1000W, depending on the required light output and the intensity needed for the area. The higher the wattage, the brighter the light, but this also requires careful planning to avoid over-illumination, which could lead to unnecessary energy consumption or discomfort for players and spectators.
One of the primary benefits of pole-mounted fixtures is their ability to provide a high degree of flexibility in terms of placement. By adjusting the number and location of the poles, the lighting design can be customized to suit the specific dimensions of the court. This means that even non-standard or irregularly shaped courts can benefit from tailored lighting solutions that ensure optimal coverage and performance.
Additionally, pole-mounted lights help to reduce the visual distractions of light glare by positioning the fixtures high above the court. This prevents players from looking directly into bright lights, which could impair their focus and ability to play. With the lights positioned at a height, the beam angles can also be adjusted to ensure that the court is illuminated in a way that minimizes shadows and maximizes visibility.
For outdoor courts, pole-mounted fixtures are often combined with other features, such as shields or visors, to further control the spread of light. These additional components can help focus the light downward onto the court, preventing light pollution from spilling into the surrounding area. This is particularly important in residential or community spaces where bright lights could disrupt nearby homes or streets. By directing light precisely where it’s needed, pole-mounted fixtures contribute to energy efficiency and environmental consideration.
Furthermore, pole-mounted fixtures are typically designed to withstand the elements. Outdoor lighting systems must be durable enough to endure varying weather conditions, such as rain, wind, snow, and extreme temperatures. The robust construction of pole-mounted LED fixtures ensures their long-term reliability, reducing the need for frequent repairs and replacements, which can be costly and disruptive to the use of the court.
Overall, pole-mounted fixtures are an excellent choice for outdoor basketball courts due to their ability to provide broad, uniform illumination while minimizing glare and energy consumption. By strategically placing the poles and fixtures, facility managers can achieve an optimal lighting setup that enhances both player performance and spectator experience.
Fixture Placement and Mounting Height
The placement of lighting fixtures on a basketball court has a profound impact on the quality of lighting and the overall player experience. It is essential that fixtures are strategically arranged to ensure that the light distribution is uniform and effective. When lights are placed at the correct height and angle, they can produce overlapping zones of illumination that minimize shadows and reduce brightness contrasts across the court surface. This ensures that players have consistent visibility, regardless of where they are on the court, which is particularly important during fast-paced gameplay where quick decision-making is critical.

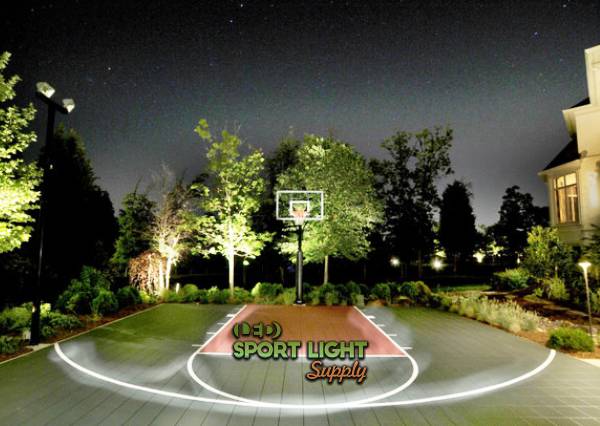

Outdoor Fixture Placement and Mounting Heights
Outdoor basketball courts typically require lights to be mounted on poles or fixtures placed around the perimeter of the court. A common mounting height for outdoor lights is between 20 to 30 feet. This height ensures that the light beams are spread wide enough to cover the entire playing surface while minimizing direct glare that could affect players. At this height, the light distribution is more uniform, and the intensity is reduced for spectators, preventing any discomfort caused by bright lights in their line of sight. Additionally, mounting lights at this height helps reduce shadows on the court, providing a better overall visual experience for both players and viewers.
In outdoor settings, the light intensity is often spread out to avoid creating harsh lighting spots. For example, lights placed higher up on poles can illuminate larger areas while reducing direct glare and the effect of overly bright spots. To ensure that all areas of the court, including the farthest corners and edges, are well-lit, the fixtures should be arranged so that their beams overlap slightly. This helps to eliminate any dark areas on the court that could impair player performance, such as around the key or along the sidelines. Overlapping light zones ensure that no part of the court is underexposed, allowing players to track the ball with ease and make precise moves.
Another important consideration in outdoor lighting placement is the court’s surroundings. Trees, buildings, or fences can all affect the way light spreads across the surface. Designers need to account for any obstructions that might block the light from reaching specific sections of the court. By placing poles in strategic locations, away from these obstacles, designers can maximize the coverage of light across the entire court. The angle at which the lights are placed should also be considered, as it plays a role in ensuring that light is directed toward the court surface and not toward the sky or surrounding areas.
Indoor Fixture Placement and Mounting Heights
For indoor basketball courts, particularly those used for organized games or events, lighting fixtures are often mounted on ceilings or suspended from high ceilings. High bay lights, for example, are typically installed between 25 to 40 feet above the floor. The higher the lights are placed, the more even and widespread the illumination will be, helping to cover the entire court without causing overly intense hot spots or harsh contrasts in brightness. The angle and distribution of the light must also be carefully considered when determining the appropriate height for ceiling-mounted fixtures. Placing lights too high or too low can result in uneven lighting and visual distractions, such as shadows or glaring spots on the court.
Indoor courts often require more precise control over the placement and angling of the lighting to ensure that the light reaches the court’s surface evenly. At greater heights, high bay lights spread light more efficiently across the court, reducing the need for a high number of fixtures. Properly angled lights will prevent the formation of hot spots, which are areas that appear much brighter than others due to poor placement or lack of overlap between light beams. Hot spots can be distracting for players, interfering with their ability to track the ball or see the movements of their opponents. By angling lights at the correct angles and ensuring that their beams overlap in key areas, the court will benefit from consistent lighting across all zones, from the three-point line to the baseline.
To maximize the lighting efficiency indoors, a grid-based layout of high bay lights is often employed. These lights are evenly distributed across the ceiling and aimed at the court to ensure that no area is underlit or too bright. As the lights are mounted higher up, they provide a broad spread of light, which is particularly useful in larger gymnasiums and arenas. This setup helps achieve uniformity while minimizing the number of fixtures needed, reducing both energy consumption and maintenance costs. It also ensures that the lights are not positioned too close to the players, which can cause glare and compromise visibility.

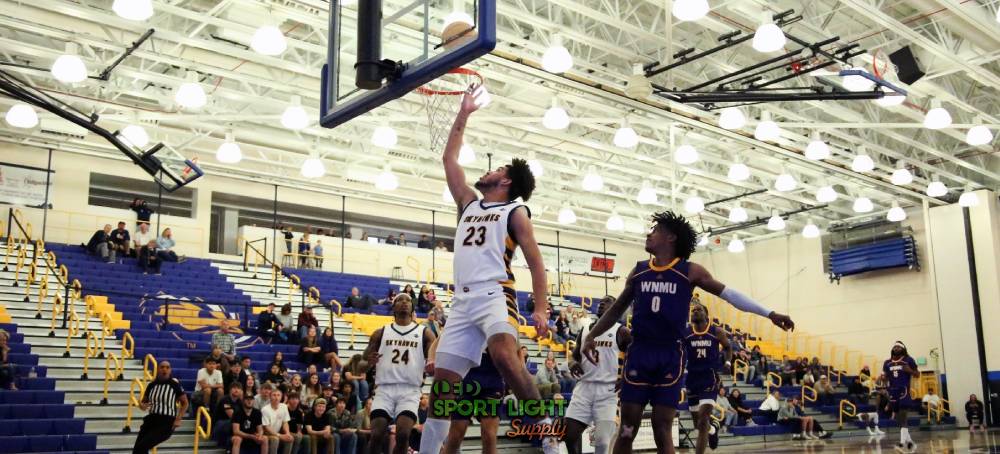

The Importance of Angling and Adjusting Lights
When positioning lights, special attention must also be paid to their angling. Correct fixture angling plays a significant role in achieving balanced lighting across the court. Properly angled lights will prevent the formation of hot spots, which are areas that are much brighter than others due to poor placement or lack of overlap between light beams. Hot spots can be distracting for players, interfering with their ability to track the ball or see the movements of their opponents. By angling lights at the correct angles and ensuring that their beams overlap in key areas, the court will benefit from consistent lighting across all zones, from the three-point line to the baseline.
In addition to angling, the fixture placement height affects the visual perception of the court during gameplay. If lights are placed too high, the players might experience a high degree of light intensity without the necessary control, leading to uneven lighting and distractions. On the other hand, if fixtures are positioned too low, the light may focus on only small sections of the court, leaving larger areas poorly lit. This could create visibility challenges for players, who need to see the entire court to react quickly and make strategic decisions.
To avoid these issues, the lights should be placed at an optimal height, typically between 20 and 30 feet for outdoor courts and 25 to 40 feet for indoor facilities. These heights ensure that the light intensity is well-distributed, and the beams cover a sufficient portion of the court. Additionally, fixtures should be angled to direct light toward the court surface rather than the surrounding areas, thereby maximizing the lighting efficiency and improving the playing experience for both athletes and spectators.
Ultimately, the fixture placement and mounting height are central to achieving high-quality court lighting. Whether for outdoor or indoor courts, the goal is to ensure that the entire surface is adequately lit, with no harsh shadows or overly bright spots. The lights should be angled and positioned to create uniformity and consistency, enhancing player performance and providing an optimal viewing experience for everyone involved in the game.
Considerations for Multi-Purpose Courts
In many community centers and school gyms, basketball courts share space with other sports or events. In these cases, the lighting design must be flexible enough to accommodate different activities. Adjustable brightness levels, known as dimmable lighting, allow operators to set the appropriate mood and functionality for each use case.
Color rendering and temperature are also factors to weigh. A lighting setup that works well for basketball might need adjustments for volleyball, badminton, or assemblies. Fixtures with tunable color temperature or programmable settings can offer more adaptability without compromising the visual clarity needed for competitive play.
Final Thoughts on Lighting Design for Basketball Courts
A basketball court lighting setup is defined by more than just how many fixtures are installed. It involves understanding the environment, matching equipment to court dimensions, and shaping the light to avoid visual imbalance. Through careful design, each fixture serves a role in producing a safe, visually clear, and consistent play environment.
The type of court, whether outdoor or indoor, sets the baseline for light levels and fixture types. From casual nighttime games in the park to full televised matches in a packed arena, each context demands its own approach. LEDs have become a common choice for their durability and ability to provide precise control over beam spread and intensity. Light positioning, mounting height, and surface reflectivity all factor into how effective the installation will be.
While technology provides many tools to optimize lighting, the core goal remains the same: to support the game. Properly lit courts allow athletes to perform without distraction, enable spectators to follow the action easily, and offer a welcoming space that meets the expectations of players and facility managers alike. Whether planning a new installation or upgrading an existing one, the right balance of quality, placement, and coverage will shape the experience for years to come.
