For Major League Baseball (MLB), lighting design is not just about creating an aesthetic effect, but about adhering to specific lux requirements to ensure the game is played under optimal conditions. Understanding these lux levels is key for both safety and performance.

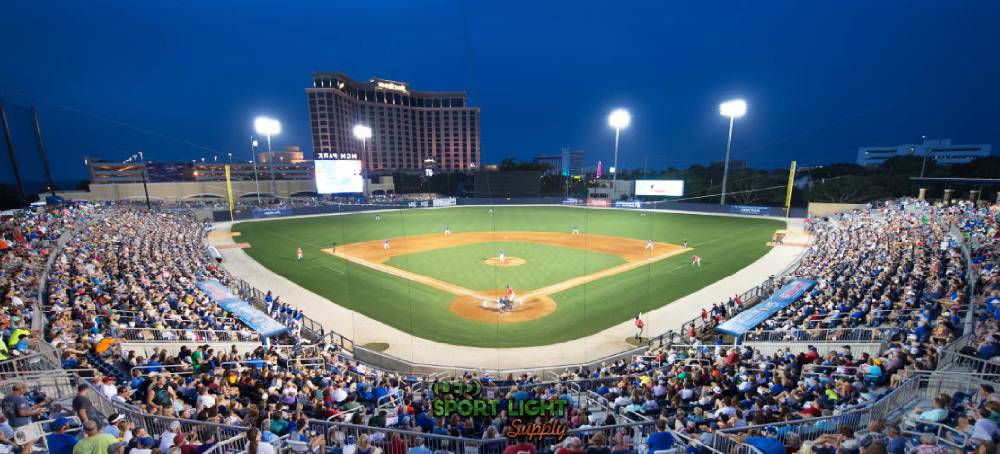

Understanding Lux and Its Role in Lighting Design
The Concept of Lux in Sports Lighting
Lux is the unit of measurement for light intensity, and it is essential in determining how much light is cast onto the playing surface. On a baseball field, lux measures the amount of light reaching various parts of the field. For Major League Baseball (MLB), achieving the correct lux levels is a fundamental aspect of the lighting design, ensuring that every area of the field is adequately illuminated. Proper lux levels not only make the game visually accessible but also guarantee that players have the proper lighting environment to perform at their best. This uniformity of light across the field plays a critical role in preventing shadows or glare that might hinder player performance or distract the viewers. Without proper illumination, the players’ ability to track the ball, especially in high-speed plays, is compromised.
| Field Zone | Horizontal Lux (Playing Surface) | Vertical Lux (Player & Broadcast Visibility) |
|---|---|---|
| Pitcher’s Mound | 700–750 lux | 750 lux |
| Home Plate | 700–750 lux | 750 lux |
| Infield | 500–600 lux | 750 lux |
| Outfield | 400 lux | 750 lux |
| Warning Track | 300 lux | 750 lux |
| Seating Areas (Fan Comfort) | 300–350 lux | N/A |

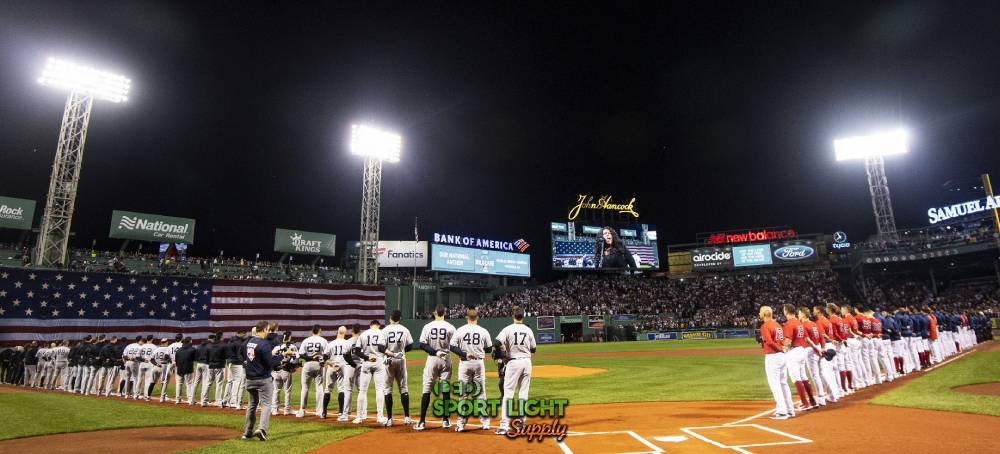

Impact of Lux on Game Performance
The impact of lux levels on game performance cannot be overstated. Insufficient lighting or uneven lux distribution can drastically affect the pace and flow of the game. Players rely on well-lit conditions to judge the speed and trajectory of the ball accurately. A decrease in lux levels could lead to slower reaction times, and in some cases, players may completely misjudge a ball’s position, resulting in missed opportunities, errors, or even injuries. For instance, an outfielder tracking a fly ball in dim light may fail to judge its descent properly, leading to a dropped catch. Furthermore, lighting that is too bright or improperly placed can create discomfort, distracting the players and interfering with their ability to focus. Achieving the ideal lux balance ensures that players can perform with precision and accuracy, leading to a more competitive and enjoyable game for all participants. Moreover, broadcasters and fans also benefit from the proper lighting setup, as it enhances the visual quality of the game, making it more enjoyable for television viewers and spectators in the stands. In short, getting the lux levels right is a cornerstone of smooth gameplay and optimal performance across all aspects of the game.
Lighting Design Standards for MLB Fields
General Lux Requirements for MLB Fields
The lighting design for MLB fields is precisely calibrated to ensure that players, broadcasters, and spectators experience optimal visibility during a game. For a standard MLB stadium, the lux levels for field lighting typically range from 500 to 750 lux depending on the area of the field. These lux levels are chosen to provide sufficient lighting across the entire field while preventing the extremes of over-illumination or under-illumination. The lighting intensity must be consistent across different sections of the field to facilitate safe play and clear visual experience for the players. However, some areas of the field require higher levels of illumination for optimal focus and to meet specific performance needs.
For example, the pitcher’s mound and home plate are focal points where precise actions take place, such as pitching and batting. These areas require more light to enhance sharp focus on these critical moments in the game. Achieving lux levels of 700 to 750 lux in these zones ensures that the pitcher can throw with precision, and the batter has clear visibility of the ball coming at high speeds. On the other hand, less intense lighting is needed for peripheral areas like the outfield, where less immediate focus is required, but visibility is still important.

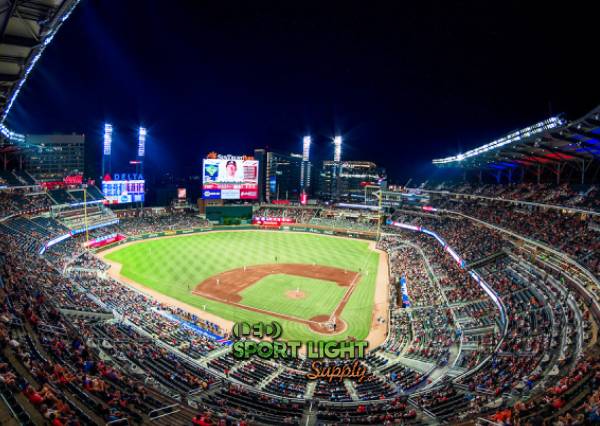

Specific Lux Levels for Key Field Zones
To maintain consistent and effective lighting across the entire field, the lux levels are carefully tailored to different zones within the stadium. The infield typically requires around 600 lux, which provides enough illumination to track a fast-moving ball without overloading the players or broadcast cameras with excessive light. This includes the batter’s box, the pitcher’s mound, and the infielders’ positions. These areas are often under constant action, so proper lighting is necessary to ensure clear visibility during quick plays, including fast throws, grounders, and line drives.
In contrast, the outfield typically requires a slightly lower intensity of around 400 lux. Since the action in the outfield is less concentrated than infield plays, a lower level of illumination suffices while still maintaining adequate visibility for players and spectators. The lighting in this region needs to be sufficiently bright to allow fielders to track fly balls without excessive brightness that could create glare or compromise visual comfort for the players.
As you move towards the warning track and other less active parts of the field, the lighting intensity can drop further to around 300 lux, ensuring players have adequate light but not too much distraction or over-illumination. It’s vital to balance lux levels across different field zones so that there is no significant drop in lighting quality, which could impact player performance, safety, or broadcast clarity.
These carefully measured lux levels—ranging from 600 lux in the infield to 400 lux in the outfield—are designed not only to enhance the experience for players and spectators but also to align with broadcast standards. MLB fields must meet specific broadcast lighting standards that require consistent lux levels for camera clarity. This ensures that every moment of the game, from infield plays to outfield catches, is visible on television without any disruption in image quality.
In addition to the lux levels, the overall distribution of light across the field is also crucial. The light should be evenly distributed to avoid shadows, hotspots, or glare, which could affect the players’ performance or the broadcast’s visual integrity. To achieve this, advanced lighting technologies, such as LED fixtures strategically placed at various heights and angles, are often employed. These fixtures allow for precision in lux distribution, ensuring a uniform level of lighting across the entire field.
These varying lux levels tailored to each specific zone of the field allow for the best overall lighting conditions in the stadium, improving both the players’ ability to perform and the fans’ enjoyment of the game.
Vertical and Horizontal Lux Requirements
Horizontal Lux Levels for the Playing Surface
Horizontal lux refers to the light intensity that reaches the playing surface of the field, which is a crucial factor in providing the best visual conditions for players. Proper horizontal lighting ensures that players can clearly see the ball at all times, no matter the speed or trajectory. For an MLB field, the recommended horizontal lux levels vary across different sections of the field to accommodate the specific needs of each area. The infield requires higher lux levels, generally around 500 lux, to ensure that fast-moving balls, such as grounders and line drives, are visible for infielders and the pitcher. This level of illumination provides just the right amount of light to allow players to react quickly and make accurate plays. In contrast, the outfield, where the ball is often airborne and farther from the players, typically requires around 400 lux to maintain visibility without over-illumination.
The goal of these horizontal lux levels is to achieve a uniform distribution of light across the entire field, ensuring that no part of the field is under-illuminated or over-illuminated. This uniformity is key for consistent gameplay, ensuring that every play, whether it involves tracking a ground ball or catching a fly ball, is performed under the same lighting conditions. For example, as a fielder moves from the infield to the outfield, the lux levels should remain balanced to allow for consistent visibility of the ball, regardless of the play type. Proper horizontal lux distribution is a fundamental component of player safety and fair competition during the game.

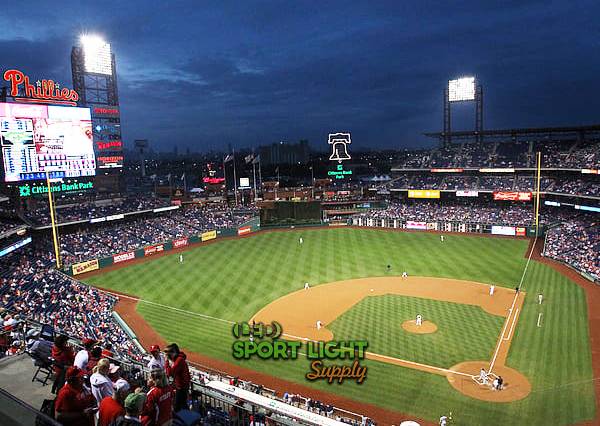

Vertical Lux Levels for Player and Broadcast Visibility
While horizontal lux measures the light that reaches the playing surface, vertical lux is just as crucial for player visibility, particularly when tracking balls that are in the air, such as fly balls or pop-ups. Vertical lux is the intensity of light on the vertical plane, helping players see the ball against the backdrop of the sky or the stadium lights. For an optimal viewing experience, a vertical lux level of around 750 lux is typically required for clear player visibility. This allows the players to track the ball more easily, especially during high-speed plays, without any noticeable visual impairments.
Vertical lux also plays an important role in ensuring that television broadcasts capture high-quality footage. With higher vertical lux, cameras can clearly capture fast-moving fly balls and close-up shots without issues like motion blur or poor lighting. When the vertical lux is not properly calibrated, it can cause difficulties for broadcast cameras, leading to suboptimal visuals for viewers. The level of vertical lux needs to be enough to highlight the ball’s trajectory and movement clearly, while preventing excessive shadows or glare that could distort the visual experience. Proper vertical lighting enhances both the player’s ability to perform under challenging conditions and the quality of the televised game, making it visually engaging for fans both at the stadium and at home.
In summary, achieving the right balance of both horizontal and vertical lux is essential to creating the ideal lighting conditions for MLB games. Horizontal lux ensures that the playing surface is evenly illuminated, allowing players to track balls effectively, while vertical lux ensures that fly balls and high-speed actions are clearly visible, both for players and the broadcast audience. Together, these lux requirements form the foundation for optimal game performance, player safety, and an overall enjoyable viewing experience for fans.
The Role of Lighting in Broadcast and Fan Experience
Lighting for Television Broadcasts
In the world of sports broadcasting, precise lighting plays a crucial role in ensuring that every moment is captured clearly for viewers. Lighting in an MLB stadium must meet the demands of high-quality television broadcasts, as it directly impacts how the game is presented on screen. One of the most important aspects of broadcast lighting is achieving vertical lux levels of 750, which ensures that players are visible even during fast-paced moments or tight camera angles. This level of illumination provides the clarity needed for viewers to follow the action, from a pitcher’s windup to a batter’s swing, without losing any of the details of the play. Without proper vertical lighting, high-speed movements, such as a line drive or a fly ball, could blur or become difficult to follow for viewers watching from home.
Moreover, achieving consistent horizontal illumination across the entire field is essential for maintaining visual consistency throughout the broadcast. If certain areas of the field are too bright or too dim, it could create visual distractions such as shadows or glaring lights, which could hinder the viewing experience. For example, if a section of the field is poorly lit, the players might appear shadowed or indistinct, which detracts from the quality of the broadcast. Ensuring even lighting across the playing surface creates a smooth, uninterrupted view for viewers, allowing them to see the game as it unfolds. This consistency is equally important for all broadcast cameras, as it prevents issues like fluctuating lighting intensity between shots, which can make the broadcast appear unprofessional and disorienting.
In addition to providing clear visuals, proper lighting for television broadcasts also supports camera optimization. Broadcasting cameras are highly sensitive to light, and without sufficient lighting, they may struggle to capture fast-moving plays or close-up shots. The correct lux levels across both vertical and horizontal planes allow the cameras to capture fast action without producing motion blur, ensuring the broadcast remains sharp and visually appealing for fans. For example, when a camera zooms in on a batter or pitcher, the lighting must be perfect to avoid overexposure or underexposure, which can ruin the shot. Broadcast lighting, therefore, is not just about providing light, but also about creating the right environment for high-quality video production.
Fan Comfort and Viewing Conditions
While television broadcast standards are a top priority for MLB stadiums, it’s equally important to consider the fan experience in the stands. Fans come to the stadium not only to watch the game but also to enjoy the atmosphere of the event. The lighting design must create optimal viewing conditions that enhance their experience without causing discomfort. One of the primary concerns for spectators is glare, which can occur if the lighting is improperly angled or too intense. To avoid glare, lighting fixtures are carefully placed at specific angles and heights to ensure that the lights shine down on the field and away from the spectators’ line of sight.
In the seating areas, lux levels are typically set between 300 and 350 lux, providing enough illumination for fans to comfortably see the game without straining their eyes. This range of lighting intensity is perfect for balancing visibility with comfort, allowing spectators to follow the action without being overwhelmed by bright lights. The lights are positioned strategically to illuminate the stadium and field while minimizing any potential disruptions to the fan’s view of the game. For example, lighting fixtures are designed to avoid shining directly into the faces of fans, creating a comfortable environment that encourages a positive atmosphere during the game.
The overall lighting setup in the stadium is also designed to contribute to the mood and excitement of the event. Proper lighting can enhance the stadium ambiance, making the atmosphere feel more energetic and engaging for the fans. By providing the right balance of light, the stadium becomes a place where fans can enjoy both the game and the experience of being at the event, which contributes to overall fan satisfaction. The lighting design also helps in maintaining the focus on the game, ensuring that no external distractions—such as poorly placed lights or excessive brightness—interfere with the enjoyment of the match.
Moreover, a well-lit stadium creates a safety-conscious environment, ensuring that fans can easily navigate the seating areas, especially in areas such as the aisles, exits, and concourses. Proper lighting ensures that people can move around the stadium with ease, preventing accidents or discomfort during the game. This type of comprehensive lighting design helps the stadium provide both a visually appealing and comfortable space for spectators to enjoy the MLB experience.
Lighting System Design and Fixture Placement
Fixture Placement and Tower Configuration
When designing the lighting system for an MLB stadium, proper fixture placement is one of the most important factors in ensuring optimal illumination across the field. The placement of lighting fixtures affects both the intensity and distribution of light, directly impacting the game’s visibility and overall broadcast quality. Fixtures must be mounted at an optimal height of 100 to 120 feet to provide uniform lighting coverage and prevent light spillover. If the fixtures are placed too low, the light distribution can become uneven, leading to areas of the field that are over-lit or under-lit. This imbalance not only hinders gameplay but also creates distracting lighting conditions for both players and spectators.
By placing fixtures at 100 to 120 feet, designers can ensure that the light is directed downward, minimizing the potential for light to reach nearby areas such as parking lots or residential neighborhoods. This setup also reduces the amount of glare that could affect both players on the field and spectators in the stands. Furthermore, careful positioning of the fixtures ensures that light is distributed evenly across the entire field, ensuring that all areas—from the infield to the outfield—receive the appropriate amount of illumination.
Another key aspect of fixture placement is the use of narrow-beam fixtures. These fixtures are designed to focus light in specific areas, which reduces the chances of light spilling into unwanted zones. By using narrow-beam fixtures, lighting designers can meet the required lux levels in each section of the field, ensuring that every play is clearly visible without wasting energy. This type of fixture placement also plays a role in reducing light pollution, which is important for the environmental and social responsibility of stadium operations.
Choosing the Right Fixtures for the Job
When selecting lighting fixtures for MLB stadiums, the choice of lighting technology is just as critical as fixture placement. In recent years, LED technology has become the preferred option for stadium lighting due to its energy efficiency and long lifespan. LEDs produce a high lumen output, providing ample illumination without the excessive power consumption associated with traditional lighting systems. For MLB fields, where the lighting must meet stringent lux requirements, LEDs offer the perfect balance between power consumption and illumination quality.
One of the most significant advantages of LED fixtures is their ability to provide precise and adjustable lighting. With the flexibility of LED systems, lighting designers can fine-tune the light intensity to meet the exact lux targets needed for the game, ensuring that the infield, pitcher’s mound, and outfield all receive the appropriate levels of illumination. LED lighting also reduces the frequency of maintenance and replacement due to its long lifespan. A typical LED fixture can last up to 50,000 hours or more, making them a cost-effective option over time.
In addition to their longevity, LED fixtures are highly durable and able to withstand the demanding conditions of an outdoor stadium environment. Extreme weather conditions, such as heat, rain, and wind, can affect the performance of other types of lighting, but LED lights are built to endure these conditions without significant performance degradation. This durability ensures that the lighting system remains reliable throughout the baseball season, even in the face of unpredictable weather.
Another consideration when choosing fixtures is their ability to offer uniform lighting distribution. LEDs can be designed with a wide range of beam angles, allowing for greater control over how light is spread across the field. This precision ensures that the lighting system can be tailored to the unique layout of the stadium, providing optimal illumination for the players while maintaining high-quality visuals for television broadcasts. Whether it’s focused on the pitcher’s mound, home plate, or the outfield, LEDs provide consistent light across every zone of the field, enhancing both player performance and viewer experience.
Additionally, LEDs contribute to cost-effectiveness by consuming less power than traditional halogen or metal-halide fixtures, leading to lower energy bills. Over time, the savings on energy costs can offset the initial investment in high-quality LED fixtures, making them a smart financial decision for MLB teams and stadium operators. Furthermore, with the growing emphasis on sustainability in sports venues, the environmental benefits of using LED lighting systems—such as lower carbon footprints and reduced waste—align with the industry’s ongoing efforts to adopt more eco-friendly practices.
In conclusion, designing the lighting system for an MLB field involves a combination of fixture placement, the right choice of lighting technology, and an understanding of the specific lux levels required for the game. By strategically placing fixtures at optimal heights and using narrow-beam LEDs, lighting designers can ensure that the field is illuminated evenly, providing ideal conditions for both players and viewers. With the energy efficiency, durability, and flexibility of LEDs, stadiums can meet their lighting needs while also achieving significant long-term cost savings and environmental benefits. The careful selection and placement of lighting fixtures is central to creating a high-quality playing environment that enhances the overall baseball experience for everyone involved.
Energy Efficiency and Sustainability
Energy Savings with LED Technology
One of the primary benefits of LED lighting in MLB stadiums is energy efficiency. LEDs use significantly less power than traditional lighting systems, reducing the overall energy consumption by up to 60%. This decrease in energy usage lowers operational costs and helps stadiums meet their sustainability goals, while still ensuring the lux levels required for gameplay.
Integrating Sustainable Practices
Many stadiums are now incorporating renewable energy sources like solar panels to offset some of their lighting energy needs. Smart control systems also help adjust the lights according to game requirements. These systems not only help reduce waste but also ensure the lux levels remain consistent, even as the environmental conditions fluctuate during a game.
Conclusion
Achieving the correct lux levels in MLB baseball field lighting is a complex but vital process. Proper lux values, from 600 lux for infield areas to 400 lux for outfield regions, ensure that players, broadcasters, and fans have the best possible experience. Vertical lux levels are also important to ensure clear visibility for players and cameras. By selecting energy-efficient LED fixtures, placing them accurately, and maintaining them regularly, stadiums can meet their lighting requirements while also optimizing energy use. Advanced control systems, combined with sustainable practices, promise a future where MLB fields not only provide optimal lighting but also contribute to energy savings and a more sustainable operation.
